WD1200/1500 Wear Plate


Product Detail

production introduction

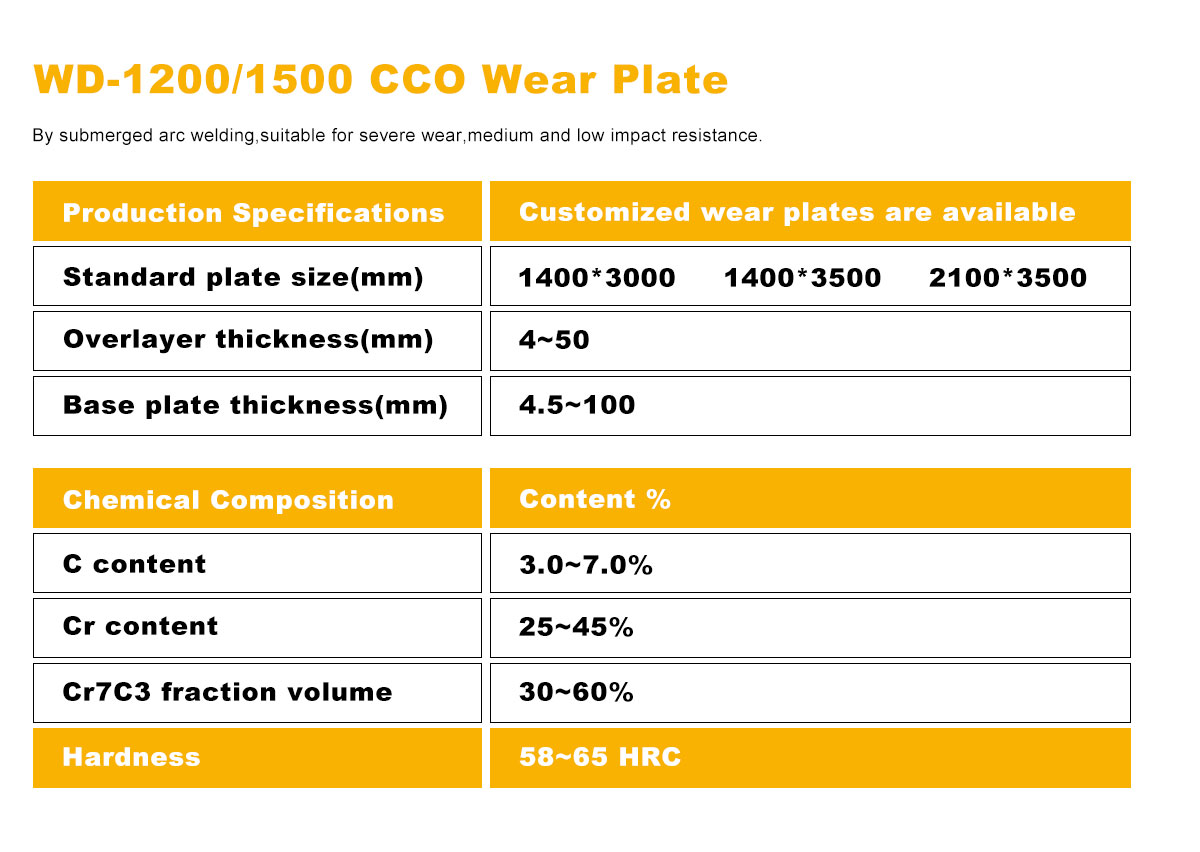

WD1200/WD1500 series
Abrasion Resistant Chromium Carbide Overlay

logo

WD1200/WD1500 is chromium carbide composite cladding fusion bonded to a mild steel backing plate. The deposit has been realized by means of submerged arc welding. WD1200/WD1500 wear plate is suitable for application involving severe abrasion and low to medium impact.

● WD1200/WD1500 series:

High chromium high carbon wear plates produced by submerged arc welding; Suited for applications involving severe abrasion and low to medium impact.

Chemicals

Hardness

Sheet Size

Base Metal

C - Cr - Fe

HRC 58-63

1400*3500/2100*3500

Q235/Q345. etc

Chemical Composition(%)

C

Cr

Mn

Si

Fe

Other

3.0-6.0

25.0-45.0

1.0-3.0

1.0-3.0

Bal.

-

Hardness

HRC 58-65

Standard Thickness(mm)

4+4;  5+5;  6+4;  6+6;  8+6;  8+8;  10+6;  10+8;  10+10;  12+12;  12+17;  etc

(overlay thickness up to 50mm)

Standard Sheet Size(mm)

1400*3500; 2100*3500;

(Customized size available)

Micro structure

Carbide volume fraction up to 50%

ASTM G65 Procedure A

0.09 - 0.16g

Operating Temperature

<400 ℃

Base Metal Material

Q235B, Q345B; A36; S235JR and structural steels

Main Industry

Mining, glass industry, cement plant, steel mill, power plant, etc

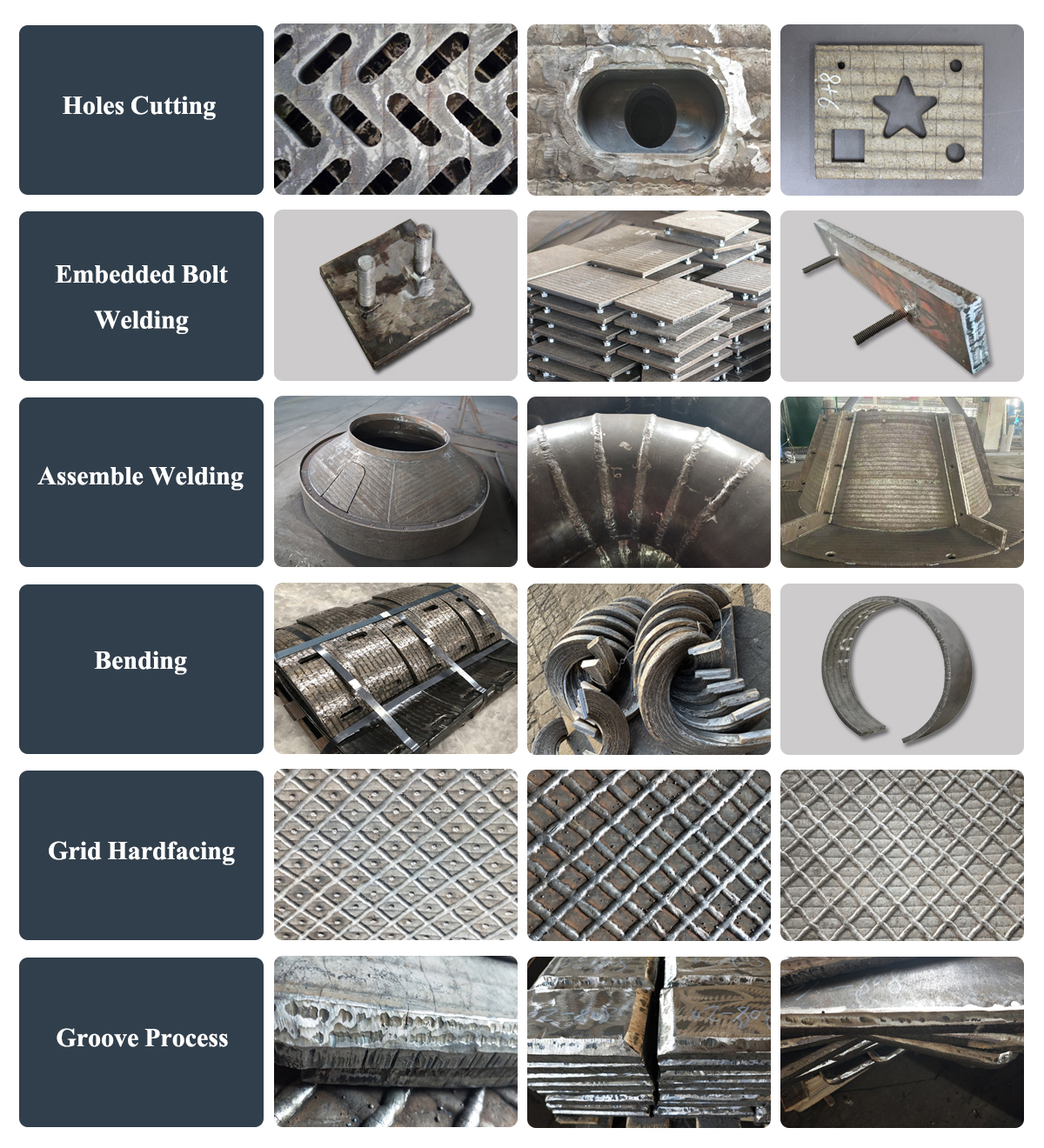

Fabrication

Plasma cutting, Gouging, Countersunk, stud bolt, Bending



Characteristics:

* Chromium carbide overlay wear resistant plate
* By submerged arc welding technology
* Chemical Composition: C: 3.0-6.0% Cr: 25-45%
* Chromium carbide Cr7C3 volume fraction about 50%
* The thickness of wear resistant layer can reach up to 50 mm
* Heat resistance up to 600°C
* Lager standard wear resistant area 1400*3000mm, 1400*3500mm, 2100*3500mm
* Better flatness with smooth surface
* Hardness: HRC58-65



WD1200-5



WD1200 Wear plate after bending

wear plate bending04
wear plate bending02
wear plate bending03
wear plate bending01
submerged arc wear plate
05chromium carbide overlay wear plate
08chromium carbide overlay wear plate
09chromium carbide overlay wear plate

Note:Carbon and Chromium content varies in different plate.
