Good Quality Wear Plate - WD1200/1500 Wear Plate – Wodon Detail:

production introduction

WD1200/WD1500 series
Abrasion Resistant Chromium Carbide Overlay

WD1200/WD1500 is chromium carbide composite cladding fusion bonded to a mild steel backing plate. The deposit has been realized by means of submerged arc welding. WD1200/WD1500 wear plate is suitable for application involving severe abrasion and low to medium impact.

● WD1200/WD1500 series:

High chromium high carbon wear plates produced by submerged arc welding; Suited for applications involving severe abrasion and low to medium impact.

Chemicals	Hardness	Sheet Size	Base Metal
C – Cr – Fe	HRC 58-63	14003500/21003500	Q235/Q345. etc

Chemical Composition(%)	C	Cr	Mn	Si	Fe	Other
	3.0-6.0	25.0-45.0	1.0-3.0	1.0-3.0	Bal.	-
Hardness	HRC 58-65
Standard Thickness(mm)	4+4; 5+5; 6+4; 6+6; 8+6; 8+8; 10+6; 10+8; 10+10; 12+12; 12+17; etc (overlay thickness up to 50mm)
Standard Sheet Size(mm)	14003500; 21003500; (Customized size available)
Micro structure	Carbide volume fraction up to 50%
ASTM G65 Procedure A	0.09 - 0.16g
Operating Temperature	<400 ℃
Base Metal Material	Q235B, Q345B; A36; S235JR and structural steels
Main Industry	Mining, glass industry, cement plant, steel mill, power plant, etc
Fabrication	Plasma cutting, Gouging, Countersunk, stud bolt, Bending

Characteristics:

* Chromium carbide overlay wear resistant plate
* By submerged arc welding technology
* Chemical Composition: C: 3.0-6.0% Cr: 25-45%
* Chromium carbide Cr7C3 volume fraction about 50%
* The thickness of wear resistant layer can reach up to 50 mm
* Heat resistance up to 600°C
* Lager standard wear resistant area 1400*3000mm, 1400*3500mm, 2100*3500mm
* Better flatness with smooth surface
* Hardness: HRC58-65

WD1200 Wear plate after bending

wear plate bending04

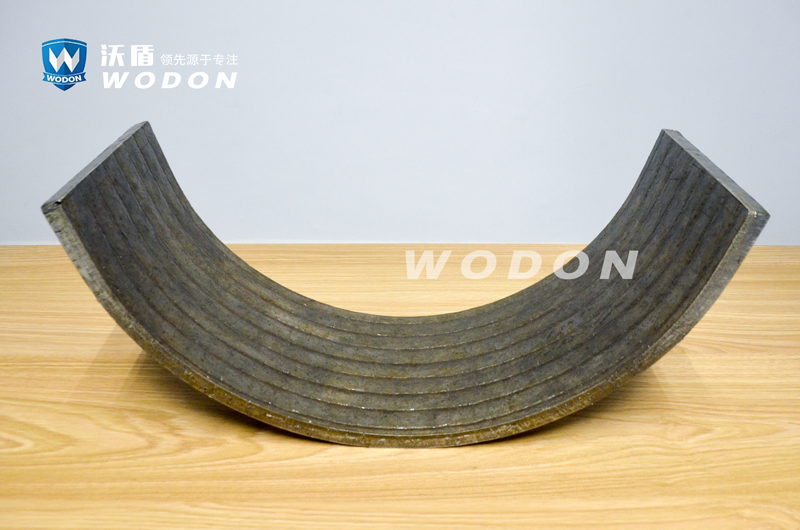

wear plate bending02

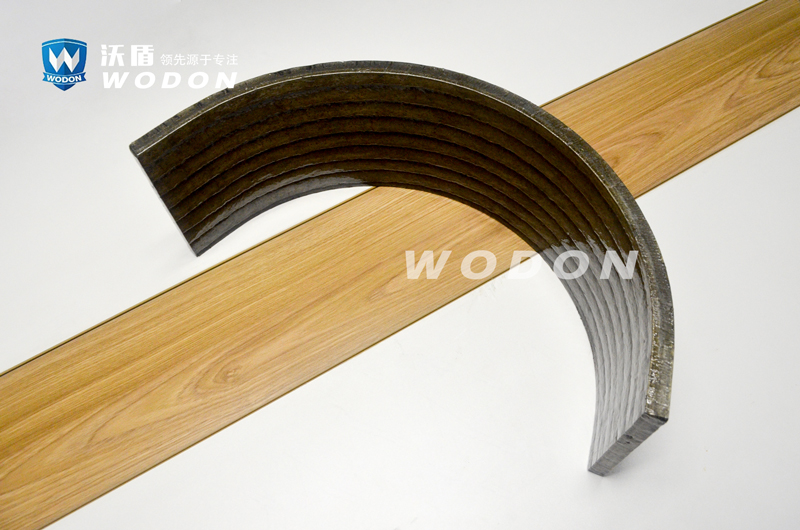

wear plate bending03
wear plate bending01
submerged arc wear plate
05chromium carbide overlay wear plate

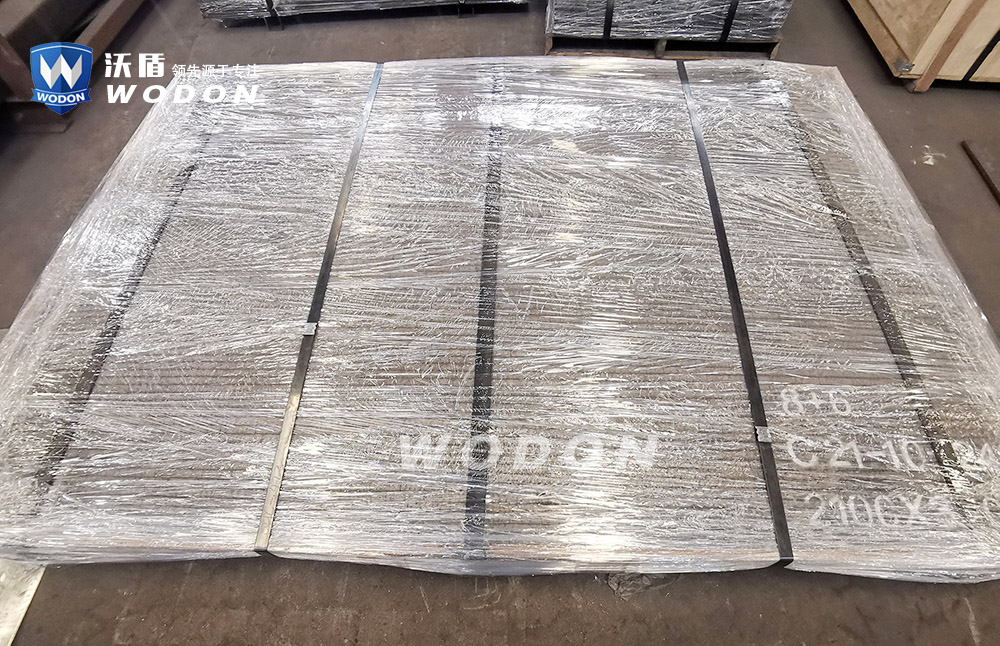

08chromium carbide overlay wear plate

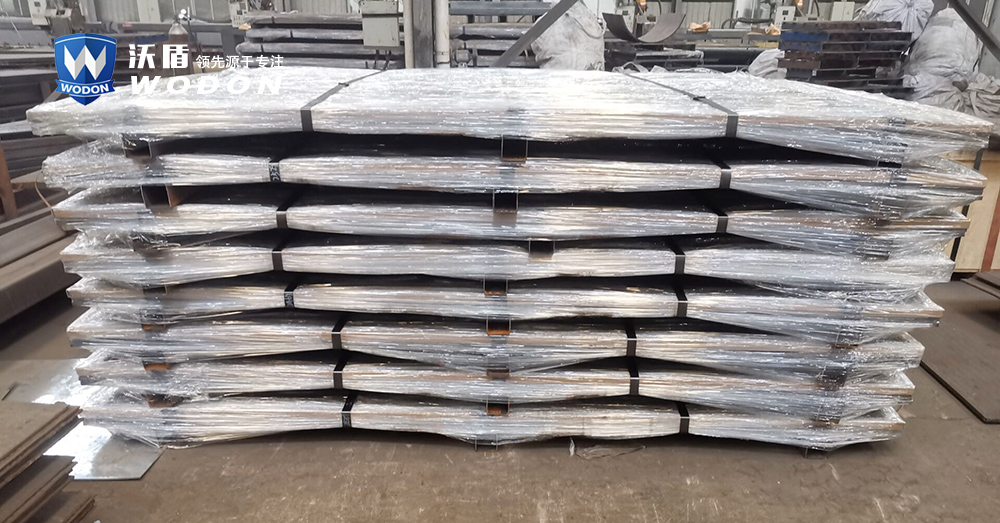

09chromium carbide overlay wear plate

Note:Carbon and Chromium content varies in different plate.
